2V Series Solenoid Valve and units
2V025-06/08 2 Way Normally Closed Pneumatic Electric Solenoid Air Valve with multi stations
Symbol

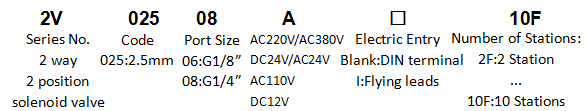

Order code
Technical parameter
|
Model |
2V025-06 |
2V025-06-10F |
2V025-08 |
|
Fluid |
Air. Water. Oil |
||
|
Acting |
Direct acting |
||
|
Initial state |
2.5 |
2.5 |
2.5 |
|
Orifice size |
0.23 |
0.23 |
0.25 |
|
Port size |
G1/8 |
G1/8 |
G1/4 |
|
Viscosity limit |
Under 20CST |
||
|
Pressure range |
0-1.0MPa(0~145psi) |
0-1.0MPa(0~145psi) |
0·05-1.0MPa(7~145psi) |
|
Proof pressure |
1.5MPa(215psi) |
||
|
Material of body |
Aluminum Alloy |
||
|
Seal material |
NBR |
||
|
Response speed |
<0.05s |
||
Feature
.2V025-08 Solenoid Valves（2 Way Normally Closed ）
.DC24V/1/4NPT（Please air in the direction of the arrow above the product）
.2v025-08 has high precision pilot head, up to 5 times/second response speed, suitable for a wide range of, responsive, smooth work, high-speed use without jam.
