ASC Series Flow Control Valve
ASC series one way throttle valve air flow control valve ASC100 ASC200 ASC300

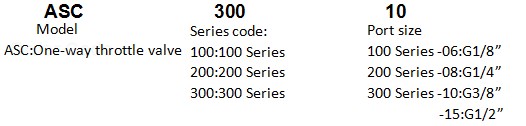

Order code

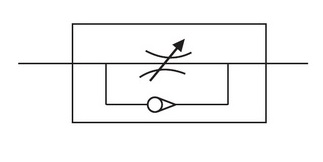

Symbol
Technical parameter
|
Model No |
ASC100-06 |
ASC200-08 |
ASC300-10 |
ASC300-15 |
||||
|
Fluid |
Air |
|||||||
|
Acting |
Direct acting type check valve |
|||||||
|
Port size |
G1/8” |
G1/4” |
G3/8” |
G1/2” |
||||
|
Valve type |
3/2 way |
4/2 way |
||||||
|
Pressure range |
0.05-0.95MPa |
|||||||
|
Proof pressure |
1.5MPa |
|||||||
|
Temperature |
-20℃~70℃ |
|||||||
|
Body material |
Aluminum Alloy |
|||||||
|
Flow |
Check valve |
200 |
450 |
1250 |
1650 |
|||
|
One-way valve |
400 |
800 |
1500 |
2500 |
||||
Feature
ASC series one-way throttle valve is small and compact structure.
Allows air to exhaust and cut off air flow. The adjustment screw of flow control valve is both sensitive and precise.
ASC100 can be mounted in various positions to facilitate installation and application.
